Merino Doors range offers a wide variety of products made from selected hardwood timbers and materials providing structural strength & dimensional stability with exceptional quality and above all you can customize your doors with endless design possibilities.

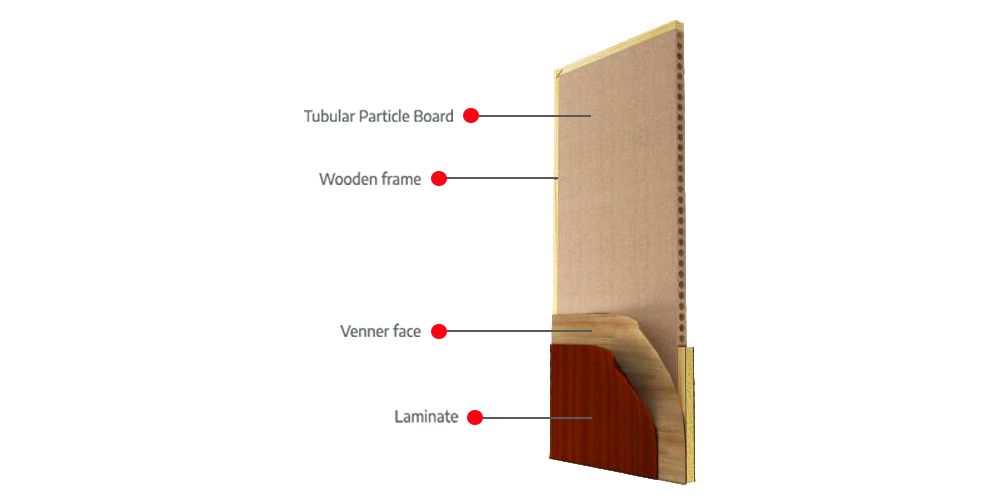

TUBULAR PARTICLE DOOR

KEY FEATURES

Boiling Water Proof

BOILING WATER PROOF

Designed to resist damage and deterioration even after being in direct contact with boiling water.

Termite Proof

TERMITE PROOF

Highly resistant to termite and fungal attack.

Borer Proof

BORER PROOF

Made from the quality of wood that is termite and borer resistant.

Fully Calibrated

FULLY CALIBRATED

No waviness on the surface, giving a smoother surface finish to your doors

Inhouse Phenolic

IN HOUSE PHENOLIC FORMALDEHYDE RESIN

Biological and chemical durability due to phenolic formaldehyde resin component.

Exceptional 1

EXCEPTIONAL STRENGTH

These laminates are build to have outstanding potential for long durability.

High Quality Selected Wood

HIGH QUALITY SELECTED WOOD VENEER

High-quality veneer surfaces for a quality finish.

Dual-Hot Press

DUAL HOT PRESS TREATMENT

The most promising material combination that is hot pressed to give it the form.

Type Of Doors

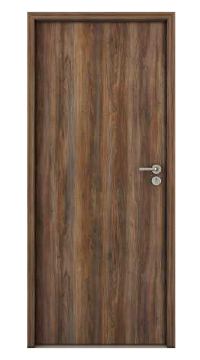

  • Laminated Door

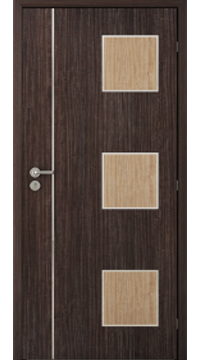

  • Multi-Laminated Doors

    Multi-Laminated Doors

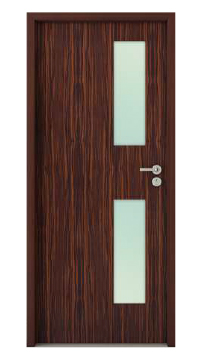

  • Single & Multi Vision Doors

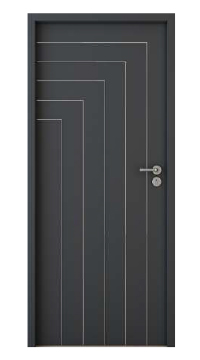

  • Groove Doors

  • Door with Edge Band

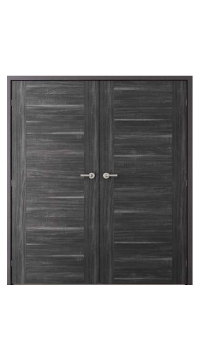

  • Double Door with Rivet

  • SS Groove Doors

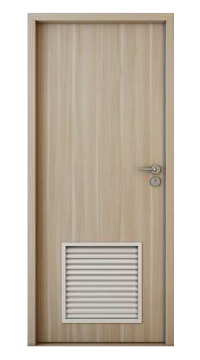

  • Louver Doors

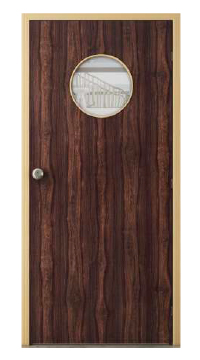

  • External & Internal Lipping Door

Specifications of Merino Tuff Flush Door as Per IS: 2202 Part-1
S.no. Name of Test As per standard IS: 2202 PArt -1 Result
1 DimensionHeightWidthThicknessSquareness Tolerance+5mm+5mm+/- 1mmDeviation not more than 1mm/500 mm length +3mm+3mm+/- 1mm
2 General Flatness Test Deviation is not greater than 6mm 4mm
3 Local Planeness Test Deviation is not greater than 0.50mm in depth NIL
4 End immersion test No Delamination No Delamination
5 Glue Adhesion Test No Delamination No Delamination
6 Knife test No crack/tear & Delamination No crack/tear & Delamination
7 Impact inclination test No crack/tear & Delamination No crack/tear & Delamination
8 Slamming test No visible damage after 50 drops No damage
9 Shock resistance test No visible damage No damage
10 Bucking test No deterioration No deterioration
11 Edge loading test Deflection at max load not greater than 5mm 1.07mm
12 Screw withdrawal test Not less than 1000N (Strength) 3140N (Strength)
13 Varying humidity test No visible warping or delamination No Effect
14 Misuse test No permanent deformation No permanent deformation

  • Disclaimer

    Physical laminate colour may vary from its digital interpretation. The colour appearance of original products may vary due to external factors.
